IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

Ürünler

Çok Çekirdekli Kontrol Kablosu

düşük duman sıfır halojen kablo

Antenle Birlikte Verilen Kablo

kaynak torç kablosu

Bize Ulaşın

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Şimdi iletişime geçin

IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

Adedi:	500 Metre
fiyat:	US$ 0.5~56 / meter
Standart ambalaj:	ahşap davul
Teslim süresi:	bir hafta veya 10 gün
Ödeme yöntemi:	L/C, T/T
Tedarik Kapasitesi:	Haftada 10000 Kilometre

Ayrıntılar Bilgi

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

ISO,CE,IEC,KEMA

model tipi:

Alçak Gerilim Bakır Güç Kablosu

Orkestra şefi:

Bakır

boyutları:

6 ~ 1000 M²

Çekirdek:

İzolasyon:

XLPE

Garanti:

iki yıl

Kılıf:

PVC

Yalıtım malzemesi:

PVC

Ambalaj:

Davul

zırh:

Çelik Tel Zırhlı

Vurgulamak:

xlpe electrical cable

xlpe power cable

Ürün Açıklaması

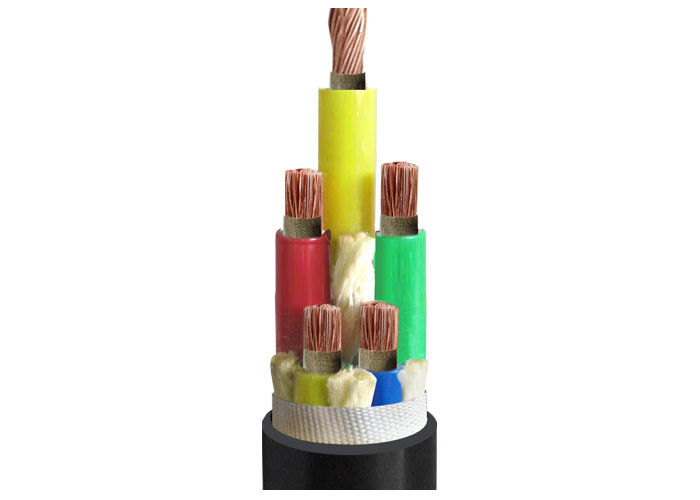

4 core Copper MIca Xlpe PVC Fire-resistant Electric Cable

Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Application Standards

International: IEC 60502, IEC 60228, IEC60332

China: GB/T 12706 1-2008

Other standards such as BS, DIN and ICEA upon request

Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

Constructions

Code	:	N-YJV
Standarts	:	TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction	:	1- Solid, Stranded or Flexible Copper Conductor
		2.-MICA TAPE
		3- XLPE insulation (cross-linked PE) or PVC
		4- PVC outer sheath, or PE, LSOH
Application	:	Preferably for installation indoors, in cable ducts and in industrial plants or
		switching stations, underground installation with additional protection where
		mechanical damage is unexpected.
Technical Data	:	Max. operating temperature 90 ºC
		Short circuit temperature 250 ºC

Code Designation

YJ: XLPE insulation

V: PVC insulation or sheath

Technical data

Rated voltage: 0.6/1kv Voltage IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant 0

IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant 1
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity

Our Services

1.We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.

2.We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples for below 20 centimeter can be provided freely.
