XLPE Insulated Cable

Adedi:	500m
fiyat:	USD 0.68-1.89/M
Standart ambalaj:	Ahşap Demir Davul
Teslim süresi:	7 gün
Ödeme yöntemi:	L/C, T/T
Tedarik Kapasitesi:	96827KM / Hafta

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

KEMA/CE/ISO/TUV/GOST

Garanti:

2 Yıl

Uygulama:

Enerji Nakil ve Aydınlatma sistemleri

Dış Koltuk:

PVC

Örnek:

KULLANILABİLİR

Test gerilimi:

600 / 1000V

Orkestra şefi:

% 100 BAKIR

Min sipariş miktarı:

500m

Fiyat:

USD 0.68-1.89/M

Ambalaj bilgileri:

Ahşap Demir Davul

Teslim süresi:

7 gün

Ödeme koşulları:

L/C, T/T

Yetenek temini:

96827KM / Hafta

Vurgulamak

xlpe electrical cable

xlpe power cable

Ürün Açıklaması

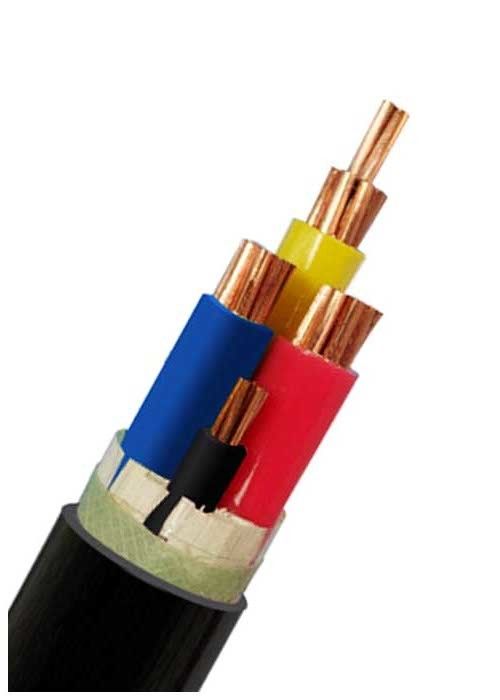

Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST₂ to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Packing:

XLPE Insulated Cable 0

Technical Specifications:

Nom. Cross-section of conductor	Strands No./Dia. of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx .Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	Lower Limit (mm)	kg/km	Ω /km	kV/5min	In air (A)	Direct In soil(A)
3 × 1.5	1/1.38	0.7	1.4	10.0	145	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.8	11.0	185	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.8	12.0	250	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.8	13.0	320	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.8	16.0	450	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.8	18.0	640	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.8	21.0	940	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.8	23.0	1260	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.8	23.0	1670	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.8	26.0	2280	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.9	30.0	3020	0.193	3.5	245	270
3 × 120	24/2.52	1.2	2.0	32.0	3790	0.153	3.5	285	310
3 × 150	30/2.52	1.4	2.2	37.0	4750	0.124	3.5	325	345
3 × 185	37/2.52	1.6	2.3	41.0	5654	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	2.4	46.0	7243	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	2.6	51.0	9465	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	3.0	64.0	12066	0.0470	3.5	570	575
