Medium Voltage Single Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm

Adedi:	500m
fiyat:	USD 1.25-8.99/M
Standart ambalaj:	Ahşap Drum
Teslim süresi:	10-15 gün
Ödeme yöntemi:	L/C, T/T
Tedarik Kapasitesi:	84320km / Hafta

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

CE/KEMA/ISO/TUV

İletken malzeme:

Kompakt Bükülü Bakır

Yalıtım malzemesi:

Çapraz Bağlı XLPE

Standart:

IEC60502-2

Shield Malzeme:

Bakır bant

Ceket Malzemesi:

PVC ST2

Maks. İletken Tepm:

90 derece

Min sipariş miktarı:

500m

Fiyat:

USD 1.25-8.99/M

Ambalaj bilgileri:

Ahşap Drum

Teslim süresi:

10-15 gün

Ödeme koşulları:

L/C, T/T

Yetenek temini:

84320km / Hafta

Vurgulamak

xlpe power cable

cross linked polyethylene cable

Ürün Açıklaması

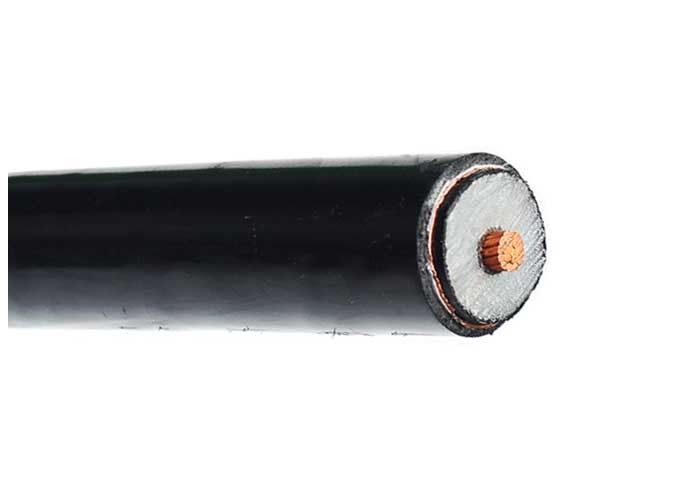

Medium Voltage Single-Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm

Construction

Conductor: Annealed Aluminum Conductor as per IEC 60228

≤ 6mm2 solid (class 1) or stranded (class 2)

＞ 6mm2 stranded (class 2)

Flexible conductor (class 5) optional.

Insulation: XLPE (Cross-Linked Polyethylene) rated at 90℃

Metallic Screen optional: Copper tape or copper wires screen optional

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN and ICEA upon request

Installation

1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.

Technical Data:

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	mm	mm	mm	kg/km	Ω /km	kV/5min	In air (A)	In soil (A)
1×70	10.5	2.4	41	1604	0.443	91	265	270
1×95	10.5	2.4	43	1767	0.320	91	320	325
1×120	10.5	2.4	44	1923	0.253	91	370	370
1×150	10.5	2.5	46	2103	0.206	91	420	420
1×185	10.5	2.5	48	2282	0.164	91	480	480
1×240	10.5	2.6	50	2584	0.125	91	565	560
1×300	10.5	2.7	53	2891	0.100	91	650	640
1×400	10.5	2.8	56	3325	0.0778	91	780	760
1×500	10.5	2.9	59	4076	0.0605	91	915	875
1×630	10.5	3.0	63	4305	0.0469	91	1030	990
1×800	10.5	3.1	68	5054	0.0367	91	1180	1140
1×1000	10.5	3.3	72	5878	0.0291	91	1350	1280
1×1200	10.5	3.4	76	6657	0.0247	91	1500	1390

Medium Voltage Single Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm 0
