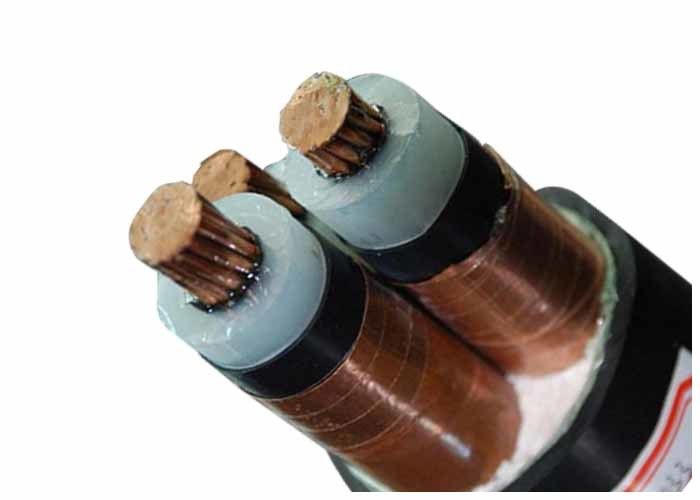

XLPE Insulated Power Cable three core with copper tape screen medium voltage power cable
Description:
0.6/1kv XLPE Insulated Electric Power cable
CU/XLPE/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO
Constructions:
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement
Applications:
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards:
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area
below 300mm2, 140℃ when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Technical Specifications:
| Nom. Cross-section of conductor |
Insulation Thickness |
Sheath Thickness |
Approx. O.D. |
Approx.Weight |
Max. D.C Resistance of Conductor (20 ℃) |
Testing Voltage A.C |
Current Rating |
| mm2 |
mm |
mm |
(mm) |
kg/km |
Ω /km |
kV/5min |
In air (A) |
In soil(A) |
| 1 × 25 |
3.4 |
2 |
20.0 |
598 |
0.727 |
21 |
140 |
150 |
| 1 × 35 |
3.4 |
2 |
22.0 |
719 |
0.524 |
21 |
175 |
180 |
| 1 × 50 |
3.4 |
2 |
23.0 |
884 |
0.387 |
21 |
205 |
215 |
| 1 × 70 |
3.4 |
2 |
24.0 |
1097 |
0.268 |
21 |
260 |
265 |
| 1 × 95 |
3.4 |
2 |
26.0 |
1378 |
0.193 |
21 |
315 |
315 |
| 1 × 120 |
3.4 |
2 |
28.0 |
1658 |
0.153 |
21 |
365 |
360 |
| 1 × 150 |
3.4 |
2 |
30.0 |
1967 |
0.124 |
21 |
415 |
405 |
| 1 × 185 |
3.4 |
2 |
31.0 |
2335 |
0.0991 |
21 |
475 |
455 |
| 1 × 240 |
3.4 |
2 |
34.0 |
2908 |
0.0754 |
21 |
565 |
530 |
| 1 × 300 |
3.4 |
2 |
36.0 |
3507 |
0.0601 |
21 |
645 |
595 |
| 1 × 400 |
3.4 |
2.5 |
39.0 |
4503 |
0.0470 |
21 |
750 |
680 |
| 1 × 500 |
3.4 |
2.5 |
42.0 |
5479 |
0.0366 |
21 |
865 |
765 |
| 1 × 630 |
3.4 |
2.5 |
48.0 |
6952 |
0.0283 |
21 |
990 |
860 |
| 1 × 800 |
3.4 |
2.6 |
52.0 |
7120 |
0.0221 |
21 |
1140 |
950 |
| 1 × 1000 |
3.4 |
2.8 |
57.0 |
10500 |
0.0176 |
21 |
1250 |
1040 |
| 3 × 25 |
3.4 |
2.3 |
41.0 |
895 |
0.727 |
21 |
120 |
125 |
| 3 × 35 |
3.4 |
2.4 |
44.0 |
2293 |
0.524 |
21 |
145 |
155 |
| 3 × 50 |
3.4 |
2.5 |
46.0 |
2812 |
0.387 |
21 |
175 |
180 |
| 3 × 70 |
3.4 |
2.6 |
50.0 |
3508 |
0.268 |
21 |
220 |
220 |
| 3 × 95 |
3.4 |
2.7 |
53.0 |
4402 |
0.193 |
21 |
265 |
265 |
| 3 × 120 |
3.4 |
2.8 |
56.0 |
5319 |
0.153 |
21 |
305 |
300 |
| 3 × 150 |
3.4 |
2.9 |
59.0 |
6309 |
0.124 |
21 |
350 |
340 |
| 3 × 185 |
3.4 |
3.0 |
62.0 |
7319 |
0.0991 |
21 |
395 |
380 |
| 3 × 240 |
3.4 |
3.2 |
68.0 |
9218 |
0.0754 |
21 |
470 |
435 |
| 3 × 300 |
3.4 |
3.4 |
72.0 |
11159 |
0.0601 |
21 |
535 |
485 |
| 3 × 400 |
3.4 |
3.6 |
81.0 |
15107 |
0.0470 |
21 |
610 |
520 |
