Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM

Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM

Adedi: 1000m
fiyat: USD 0.4 To 10.5 per Meter
Standart ambalaj: Ahşap Çelik Variller
Teslim süresi: 10-15 gün
Tedarik Kapasitesi: Günde 8 KM
Ayrıntılı Bilgiler
Menşe yeri
Çin
Marka adı
QINGDAO YICABLE CABLE
Sertifika
CE/KEMA/CCC/TUV
Çekirdek:
4 ila 61
zırh:
Çelik bant
Sertlik:
esnek
Boyutu:
0.75mm2 ila 10mm2
İletken tipi:
Sınıf 5
İzolasyon:
XLPE
Out kılıf:
LSOH Kılıf
Vurgulamak:

multicore flexible cable

,

multi core electrical cable

Ürün Açıklaması

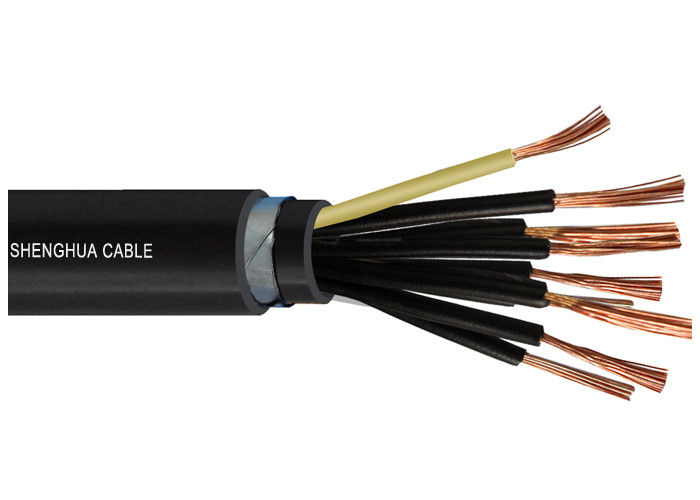

Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM



Descriptions:



Conductor: Flexible Conductor

Insualtion: XLPE

Screen: Copper Tape

Inner Sheath: LSOH Inner Sheath

Armor: Steel Tape

Sheath: LSOH Sheath



Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 90°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 250°C;

Ambient temperature of installation not less than 0°C.





Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:



IEC Standard: IEC 60227, IEC60228.IEC60332,IEC60754

China Standard: GB9330,GB12666

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Why Choose SHAN CABLE



Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.



Technology Data



Cross-Sectional
Area mm2
Thickness of
Insulation mm
Thickness of Copper tape Screen
mm
Thickness of
Steel Tape mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
4x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 13.5 16.2 0.001 7.41 470
4x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.0085 4.61 525
4x6 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.7 18.9 0.007 3.08 640
4x10 1 0.05-0.1 2x0.2(0.3) 1.7 19.5 23.6 0.0065 1.83 970
5x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.4 17.3 0.001 7.41 526
5x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.5 18.7 0.0085 4.61 606
5x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 16.8 20.3 0.007 3.08 757
5x10 1 0.05-0.1 2x0.2(0.3) 1.7 21.2 25.5 0.0065 1.83 1145
7x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 11.9 14.3 0.012 24.5 337
7x1.0 0.6 0.05-0.1 2x0.2(0.3) 1.5 12.3 14.7 0.011 18.1 445
7x2.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 13.3 16.2 0.01 7.41 574
7x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.3 18.5 0.0085 4.61 723
7x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.1 21.8 0.007 3.08 930
7x10 1 0.05-0.1 2x0.2(0.3) 1.7 22.8 27.4 0.0065 1.83 1430
10x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 13.9 16.8 0.012 24.5 470
10x1 0.6 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.011 18.1 580
10x1.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 16.2 19.6 0.011 12.1 780
10x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.9 22.8 0.01 7.41 986
10x4 0.8 0.05-0.1 2x0.2(0.3) 1.7 20.6 24.9 0.0085 4.61 1256
10x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 22.6 27.2 0.007 3.08 1589





Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM 0



Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM 1
