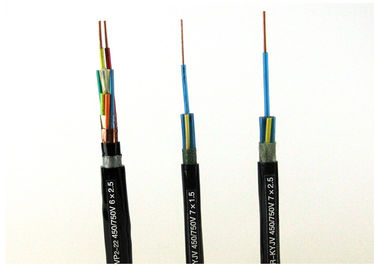

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection

Adedi: 1000m
fiyat: USD 0.4 To 10.5 per Meter
Standart ambalaj: Ahşap Çelik Variller
Teslim süresi: 10-15 gün
Tedarik Kapasitesi: Günde 8 KM
Ayrıntılı Bilgiler
Menşe yeri
Çin
Marka adı
QINGDAO YICABLE CABLE
Sertifika
CE/KEMA/CCC/TUV
Çekirdek:
4 ila 61
zırh:
Çelik bant
Metal ekran:
Bakır bant
Boyutu:
0.75mm2 ila 10mm2
İletken tipi:
Sınıf A veya Sınıf B
İzolasyon:
PVC
Out kılıf:
PVC
Vurgulamak:

multicore flexible cable

,

multicore power cable

Ürün Açıklaması

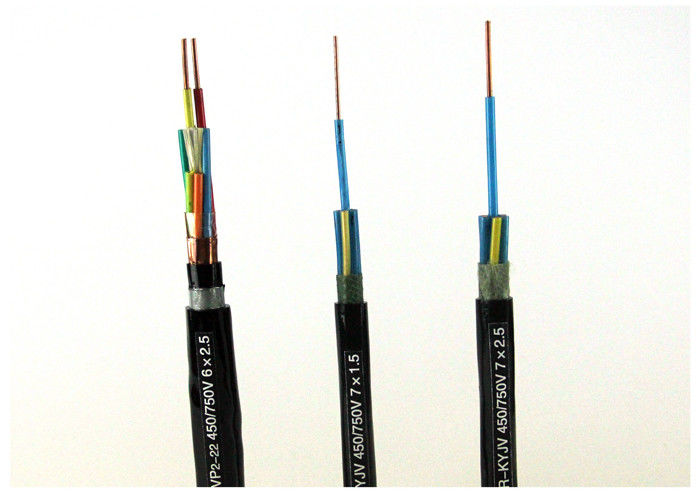

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection





Descriptions:



Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Screen: Copper Tape

Inner Sheath: PVC

Armor: Steel Tape

Sheath: PVC



Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.





Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Technology Data



Cross-Sectional
Area mm2
Thickness of
Insulation mm
Thickness of Copper tape Screen
mm
Thickness of
Steel Tape mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
4x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 13.5 16.2 0.001 7.41 470
4x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.0085 4.61 525
4x6 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.7 18.9 0.007 3.08 640
4x10 1 0.05-0.1 2x0.2(0.3) 1.7 19.5 23.6 0.0065 1.83 970
5x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.4 17.3 0.001 7.41 526
5x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.5 18.7 0.0085 4.61 606
5x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 16.8 20.3 0.007 3.08 757
5x10 1 0.05-0.1 2x0.2(0.3) 1.7 21.2 25.5 0.0065 1.83 1145
7x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 11.9 14.3 0.012 24.5 337
7x1.0 0.6 0.05-0.1 2x0.2(0.3) 1.5 12.3 14.7 0.011 18.1 445
7x2.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 13.3 16.2 0.01 7.41 574
7x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.3 18.5 0.0085 4.61 723
7x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.1 21.8 0.007 3.08 930
7x10 1 0.05-0.1 2x0.2(0.3) 1.7 22.8 27.4 0.0065 1.83 1430
10x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 13.9 16.8 0.012 24.5 470
10x1 0.6 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.011 18.1 580
10x1.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 16.2 19.6 0.011 12.1 780
10x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.9 22.8 0.01 7.41 986
10x4 0.8 0.05-0.1 2x0.2(0.3) 1.7 20.6 24.9 0.0085 4.61 1256
10x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 22.6 27.2 0.007 3.08 1589
