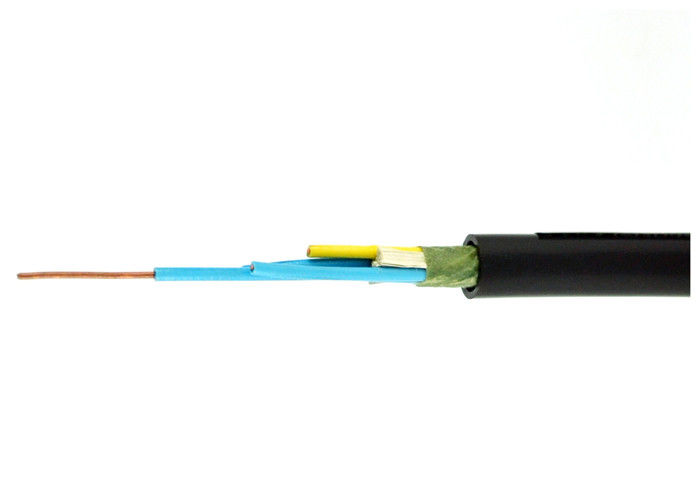

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Adedi: 1000m
fiyat: USD 0.4 To 10.5 per Meter
Standart ambalaj: Rulo başına 100/200 Metre veya Ahşap Çelik Varil
Teslim süresi: 10-15 gün
Tedarik Kapasitesi: Günde 8 KM
Ayrıntılı Bilgiler
Menşe yeri
Çin
Marka adı
QINGDAO YICABLE CABLE
Sertifika
CE/KEMA/CCC/TUV
insualtion:
PVC
Kılıf:
PVC
Malzeme:
Bakır
İletken tipi:
Sınıf1 veya Sınıf2
Çekirdekler No.:
2 ila 61
Boyutu:
0.75mm2 ila 10mm2
İletken Şekli:
Yuvarlak
Renk:
Siyah ya da gri
Vurgulamak:

multicore flexible cable

,

multicore power cable

Ürün Açıklaması

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench



Construction:



Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.





Specifications:



Cross-Sectional
Area mm2
Thickness of
Insulation
Thickness of
Sheath
Overall Diameter Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
2x0.75 0.6 1.2 6.7 8.1 0.012 24.5 59
2x1 0.6 1.2 7 8.5 0.011 18.1 67
2x1.5 0.7 1.2 7.9 9.5 0.011 12.1 86
2x2.5 0.8 1.2 9 10.9 0.01 7.41 120
2x4 0.8 1.2 9.9 11.9 0.0085 4.61 167
2x6 0.8 1.2 10.8 13.1 0.007 3.08 220
3x0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3x1 0.6 1.2 7.4 8.9 0.011 18.1 82
3x1.5 0.7 1.2 8.3 10 0.011 12.1 108
3x2.5 0.8 1.2 9.5 11.5 0.01 7.41 154
3x4 0.8 1.2 10.5 12.4 0.0085 4.61 210
3x6 0.8 1.2 11.5 13.9 0.007 3.08 310
