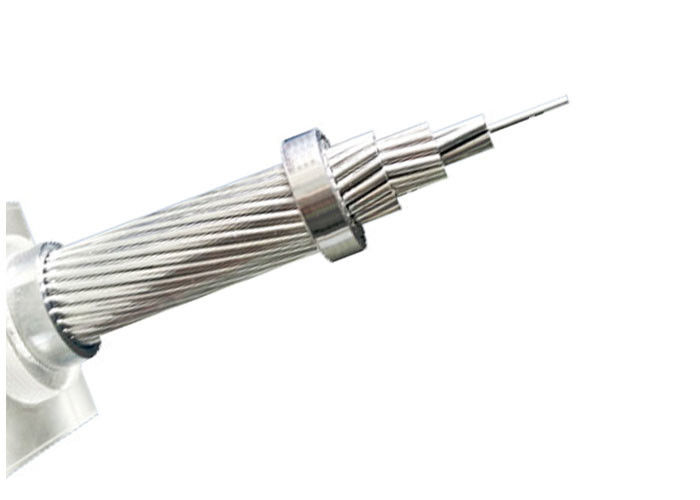

Overhead conductor Aluminium stranded conductors steel-reinforced (ACSR)
Applications
Steel-cored aluminium strands are made of aluminium wires and steel wires, which are suitable for AC overhead transmission lines.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Code
Name |
Nominal |
Number/Diameter |
Calculated Area mm2 |
Diameter mm |
Resistance
≤Ω/km |
Force
KN |
Weight
kg/km |
| AWG or MCM |
Al
mm |
Steel
mm |
Al |
Steel |
Total |
| Turkey |
6 |
6/1.68 |
1/1.68 |
13.29 |
2.19 |
15.48 |
5.04 |
2.1586 |
5.24 |
54 |
| Swan |
4 |
3/2.12 |
1/2.12 |
21.16 |
3.55 |
24.71 |
6.36 |
1.3557 |
8.32 |
85 |
| Swanate |
4 |
7/1.96 |
1/2.61 |
21.16 |
5.35 |
26.51 |
6.53 |
1.3557 |
10.53 |
100 |
| Sparrow |
2 |
6/2.67 |
1/2.67 |
33.61 |
5.61 |
39.22 |
8.01 |
0.8535 |
12.70 |
136 |
| Sparate |
2 |
7/2.47 |
1/3.30 |
33.61 |
8.52 |
42.13 |
8.24 |
0.8535 |
16.11 |
159 |
| Robin |
1 |
6/3.00 |
1/3.00 |
42.39 |
7.10 |
49.49 |
9.00 |
0.6767 |
15.85 |
171 |
| Raven |
1/0 |
6/3.78 |
1/3.37 |
53.48 |
8.90 |
62.38 |
10.11 |
0.5364 |
19.32 |
216 |
| Quail |
2/0 |
6/3.78 |
1/3.78 |
67.42 |
11.23 |
78.65 |
11.34 |
0.4255 |
23.62 |
273 |
| Pigeon |
3/0 |
6/4.25 |
1/4.25 |
85.03 |
14.19 |
99.22 |
12.75 |
0.3373 |
29.41 |
343 |
| Penguin |
4/0 |
6/477 |
1/4.77 |
107.23 |
17.87 |
125.10 |
14.31 |
0.2675 |
37.06 |
433 |
| Waxwing |
266.8 |
18/3.09 |
1/3.09 |
135.16 |
7.48 |
142.64 |
15.45 |
0.2133 |
30.27 |
431 |
| Partridge |
266.8 |
26/2.57 |
7/2.00 |
135.16 |
22.00 |
157.16 |
16.28 |
0.2143 |
50.29 |
546 |
| Ostrich |
300 |
26/2.73 |
7/2.12 |
152.00 |
24.71 |
176.71 |
17.28 |
0.1906 |
56.52 |
614 |
| Merlin |
336.4 |
18/3.47 |
1/3.47 |
170.45 |
9.48 |
179.93 |
17.5 |
0.1691 |
38.23 |
544 |
| Linnet |
336.4 |
26/2.89 |
7/2.25 |
170.45 |
21.81 |
198.26 |
18.31 |
0.1699 |
62.71 |
689 |
| Oriole |
336.4 |
30/2.69 |
7/2.69 |
170.45 |
39.81 |
210.26 |
18.83 |
0.1704 |
77.27 |
784 |
| Chickadee |
397.5 |
18/3.77 |
1/3.77 |
201.42 |
11.16 |
212.58 |
18.85 |
0.1431 |
43.99 |
642 |
| Brant |
397.5 |
24/3.27 |
7/2.18 |
201.42 |
26.13 |
227.55 |
19.61 |
0.1438 |
64.69 |
762 |
| Ibis |
397.5 |
26/3.14 |
7/2.44 |
201.42 |
32.77 |
234.19 |
19.88 |
0.1438 |
72.11 |
814 |
| Lark |
397.5 |
30/2.92 |
7/2.92 |
201.42 |
46.97 |
248.39 |
20.44 |
0.1442 |
88.69 |
927 |
| Pelican |
477 |
18/4.14 |
1/4.14 |
241.68 |
13.42 |
255.10 |
20.70 |
0.1193 |
52.16 |
771 |
| Flicker |
477 |
24/3.58 |
7/2.39 |
241.68 |
31.29 |
272.97 |
21.49 |
0.1199 |
76.66 |
915 |
| Hawk |
477 |
26/3.44 |
7/2.67 |
241.68 |
39.42 |
281.10 |
21.79 |
0.1199 |
86.65 |
978 |
| Hen |
477 |
30/3.20 |
7/3.20 |
241.68 |
56.39 |
298.07 |
22.40 |
0.1201 |
105.34 |
1112 |
| Osprey |
556.5 |
18/4.47 |
1/4.47 |
282.00 |
15.68 |
297.68 |
22.35 |
0.1022 |
60.88 |
899 |
| Parakeet |
556.5 |
24/3.87 |
7/2.58 |
282.00 |
36.58 |
318.58 |
23.22 |
0.1027 |
88.22 |
1067 |
| Dove |
556.5 |
26/3.72 |
7/2.89 |
282.00 |
45.94 |
327.94 |
23.55 |
0.1027 |
101.03 |
1140 |
