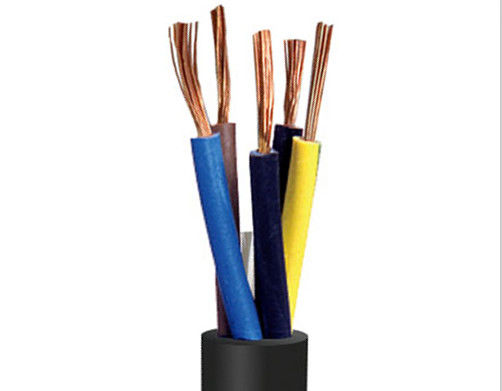

Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication

Adedi:	500
fiyat:	USD1.5-200
Standart ambalaj:	Ahşap Drum
Teslim süresi:	12 iş günü
Tedarik Kapasitesi:	30000/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

CE KEMA

İzolasyon:

Kauçuk

Ceket:

Kauçuk

Türü:

Düşük voltaj

Kablo boyutu:

0.3-400mm2

İletken malzeme:

Bakır

Uygulama:

açık

Min sipariş miktarı:

500

Fiyat:

USD1.5-200

Ambalaj bilgileri:

Ahşap Drum

Teslim süresi:

12 iş günü

Yetenek temini:

30000/ay

Vurgulamak

trs flexible cable

rubber sheathed cable

Ürün Açıklaması

Rubber Sheathed Cable for communication(GB/T5013-2008,JB8735-1998)

1 Application

This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments.

2 Operation character

1) 60245IEC53(YZ),60245IEC57(YZW), model rated voltage Uo/U is 300/500V, 60245IEC66(YCW),YC rated voltage Uo/U is 450/750V.

2)Long time allow working temperature of wire core is not more than 65℃.

3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.

4)ZR model cable has the property of fire-resistance.

3 Model name and usage

Model No.	Product Name	Applications
YQ,YQW	Light model rubber sheath flexible cable	Used for light portable electric equipment and tools
YZ, YZW	Middle model rubber sheath flexible cable	Used for various portable electric equipment and tools
YC. YCW	Heavy model rubber sheath flexible cable	Used for various portable electric equipment which can bear large mechanical force effect

Certificates

CE, RoHS, CCC, KEMA and more others at request

4 Size, weight and technological date

300/300V YQ/YQW light model

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
2x0.3	16/0.15	4.3	5.8	69.2	71.2	30	31.5
2x0.5	28/0.15	4.8	6.4	39	40.1	43	45.5
3x0.3	16/0.15	4.6	6.1	69.2	71.2	36	38.5
3x0.5	28/0.15	5.1	6.7	39	40.1	74	77

300/500V YZ/YZW medium model

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Copper	Tinned-Copper	YZ	YZW
2x0.75	24/0.2	5.7	7.4	26	26.7	81.7	89.6
2x1	32/0.2	6.1	8	19.7	20	123	138
2x1.5	16/0.25	7.6	9.8	13.3	13.7	185	196
2x2.5	28/0.25	9	11.6	7.98	8.21	234	252
2x4	56/0.3	10.6	13.7	4.95	5.09	255	276
2x6	84/0.3	11.8	15.1	3.3	3.39	356	371
3x0.75	24/0.2	6.2	8.1	26	26.7	97.4	105
3x1	32/0.2	6.5	8.5	19.7	20	112	126
3x1.5	16/0.25	8	10.4	13.3	13.7	156	174
3x2.5	28/0.25	9.6	12.4	7.98	8.21	204	2019
3x4	56/0.3	11.3	14.5	4.95	5.09	285	302
3x6	84/0.3	12.6	16.1	3.3	3.39	398	423
4x0.75	24/0.2	6.8	8.8	26	26.7	117	125
4x1	32/0.2	7.1	9.3	19.7	20	134	148
4x1.5	16/0.25	9	11.6	13.3	13.7	186	206
4x2.5	28/0.25	10.7	13.8	7.98	8.21	255	270
4x4	56/0.3	12.7	13.8	4.95	5.09	356	374
4x6	84/0.3	14	17.9	3.3	3.39	465	482
