Rubber Sheathed Cable for communication , YQ / YQW / YZ / YZW / YC / YCW Cable

Adedi:	500
fiyat:	USD1.5-200
Standart ambalaj:	Ahşap Drum
Teslim süresi:	12 iş günü
Tedarik Kapasitesi:	30000/ay

Ayrıntılar Bilgi

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

CE KEMA

İzolasyon:

Kauçuk

İletken malzeme:

Bakır

Ceket:

Kauçuk

Türü:

Düşük voltaj

Uygulama:

Deniz

Kablo boyutu:

0.3-300mm2

Standart:

IEC245-1980

Vurgulamak:

rubber insulated wire

rubber sheathed cable

Ürün Açıklaması

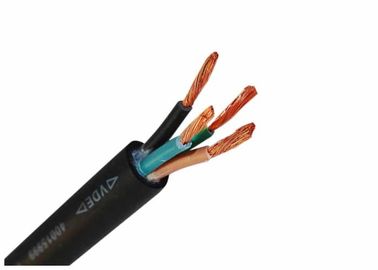

Rubber Sheathed Cable for communication , YQ / YQW / YZ / YZW / YC / YCW Cable

Product name: Rubber Sheath Cable,YQ/YQW/YZ/YZW/YC/YCW Cable flexible rubber cable ,high quality

Constructions

Conductor: plain annealed copper

Insulation:rubber

Outer sheath:rubber

Note: Insulation color as per standards or at request

Applications

The product is suitable for use in connection lines or fixed installation of power tools, a variety of portable electrical equipment, welding and welding clamp with rated power frequency voltage up to and including 450/750V.

Standards

International: IEC245-1980

Chinese: GB5013.1.2.3-85

Other standards such as BS,DIN and ICEA upon request

Technical data

The allowed operating temperature of the core is 65°C when U0/U is 0.66/1.14kV and below, 85°C when U0/U is 3.6/6kV
Min. bending radius is six times the size of cable diameter
The yellow sheath cable should not be exposed in the sun for long time

Coal Mining Machine Cable:The cables are suitable for coal mining machine and similar equipment as power connecting cable.

Certificates

CE, RoHS, CCC, KEMA and more others at request

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Copper	Tinned-Copper	YZ	YZW
2x0.75	24/0.2	5.7	7.4	26	26.7	81.7	89.6
2x1	32/0.2	6.1	8	19.7	20	123	138
2x1.5	16/0.25	7.6	9.8	13.3	13.7	185	196
2x2.5	28/0.25	9	11.6	7.98	8.21	234	252
2x4	56/0.3	10.6	13.7	4.95	5.09	255	276
2x6	84/0.3	11.8	15.1	3.3	3.39	356	371
3x0.75	24/0.2	6.2	8.1	26	26.7	97.4	105
3x1	32/0.2	6.5	8.5	19.7	20	112	126
3x1.5	16/0.25	8	10.4	13.3	13.7	156	174
3x2.5	28/0.25	9.6	12.4	7.98	8.21	204	2019
3x4	56/0.3	11.3	14.5	4.95	5.09	285	302
3x6	84/0.3	12.6	16.1	3.3	3.39	398	423
4x0.75	24/0.2	6.8	8.8	26	26.7	117	125
4x1	32/0.2	7.1	9.3	19.7	20	134	148
4x1.5	16/0.25	9	11.6	13.3	13.7	186	206
4x2.5	28/0.25	10.7	13.8	7.98	8.21	255	270
4x4	56/0.3	12.7	13.8	4.95	5.09	356	374
4x6	84/0.3	14	17.9	3.3	3.39	465	482

Rubber Sheathed Cable for communication , YQ / YQW / YZ / YZW / YC / YCW Cable 0
