PVC Out Sheath Steel Wire Armoured Power Cable With Copper Conductor

Adedi:	1000 metre
fiyat:	$0.25~105/M
Standart ambalaj:	Davul
Teslim süresi:	bir hafta veya 10 gün
Ödeme yöntemi:	T / T, L / C
Tedarik Kapasitesi:	Ayda 10.000 Kilometre

Ayrıntılar Bilgi

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

ISO,CE,IEC,TUV,KEMA

Ürün adı:

Çelik Zırhlı Kablo

Anma gerilimi:

18 / 30kV

İzolasyon:

XLPE

Orkestra şefi:

zırh:

çelik tel

boyutları:

1.0 - 630 Metrekare

Çekirdek:

1 veya 3

standartları:

IEC / BS / IS / VDE

Vurgulamak:

armored electrical wire

armoured power cable

Ürün Açıklaması

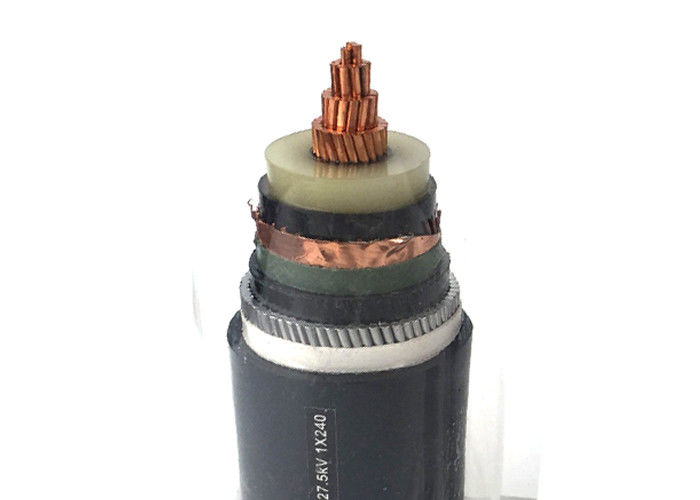

PVC Out Sheath Steel Wire Armour Power Cable With Copper Conductor

Rated Voltage(kV):

18/30kV

Number of cores:

Construction

Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2

Conductor Screen:Extruded semi-conductive compound

Insulation:XLPE (cross-linked polyethylene) rated at 90°C

Insulaton Screen:Extruded semi-conductive compound
Metallic Screen:copper tape or a concentric layer of copper wires
Colour for core indentification:Red,Yellow ,Blue tape shall be applied between insulation screen and metallic screen ( The above identifying can be changed as order)
Assembly : Three screened cores are laid up together ,if necessary filled with non hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath:Extruded layer of PVC ST2 or PE , LSZH
Armour: Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH

Model & Spec.

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500
YJV22 YJLV22	Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable	0.6/1KV	3	1.5 to 400	Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
		0.6/1KV	4	4 to 240
		6/6kV 8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	3	50 to 240

Technique property:

1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
