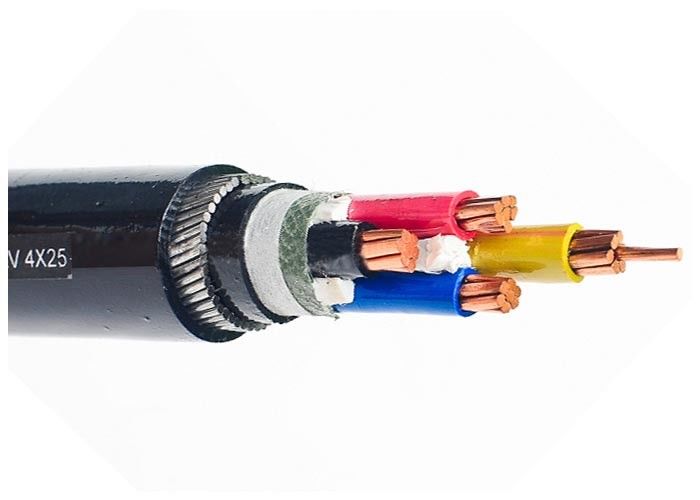

5 Core SWA PVC Armoured Electrical Cable 2 Top Armoured Power Cable 90 °C

5 Core SWA PVC Armoured Electrical Cable 2 Top Armoured Power Cable 90 °C

Adedi: 500m
fiyat: USD 2.66-8.89/M
Standart ambalaj: Ahşap Drum
Teslim süresi: 7 gün sonra depozito var
Ödeme yöntemi: L/C, T/T
Tedarik Kapasitesi: 8678KM / Gün
Ayrıntılı Bilgiler
Menşe yeri
Çin
Marka adı
QINGDAO YICABLE CABLE
Sertifika
CE/KEMA/TUV/RoSH/ISO
Temp çalışma:
90 ° C
Zırhlı Malzeme:
Yuvarlak Çelik Tel.
Örnek:
KULLANILABİLİR
Test gerilimi:
3500V
İzolasyon:
XLPE
Garanti:
2 Yıl
Dış Kılıf Rengi:
Siyah veya istek başına
Vurgulamak:

armored electrical wire

,

armored cable wiring

Ürün Açıklaması

5 Core SWA PVC Armoured Electric Power Cable 2 Top China Cable Manufacturer





Constructions



Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

Insulation: XLPE(cross-linked polyethylene) rated at 90oC

Inner Covering: PVC

Inner Sheath: PVC

Armoring: Steel Wire

Overall Sheath: PVC type ST8 to IEC 60502, black

Note: Insulation color as per standards or at request



Applications



Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data





Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D



Certificates



CE, RoHS, CCC, KEMA and more others at request


Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
5 × 4 1/2.25 0.7 1.0 1.25 1.8 20.0 783 4.61 3.5 34 45
5 × 6 1/2.76 0.7 1.0 1.25 1.8 22.4 946 3.08 3.5 43 57
5× 10 7/1.38 0.7 1.0 1.6 1.8 25.8 1398 1.83 3.5 60 77
5 × 16 7/1.78 0.7 1.0 1.6 1.8 29.0 1784 1.15 3.5 83 105
5 × 25 7/2.14 0.9 1.0 1.6 1.8 34.2 2378 0.727 3.5 105 125
5 × 35 7/2.52 0.9 1.0 1.6 1.9 37.8 3237 0.524 3.5 125 155
5× 50 10/2.52 1.0 1.2 2.0 2.1 43.2 3994 0.387 3.5 160 185
5× 70 14/2.52 1.1 1.2 2.0 2.3 49.0 5514 0.268 3.5 200 225
5× 95 19/2.52 1.1 1.4 2.5 2.5 55.0 6816 0.193 3.5 245 270
5 × 120 24/2.52 1.2 1.4 2.5 2.6 61.0 8174 0.153 3.5 285 310
5 × 150 30/2.52 1.4 1.4 2.5 2.8 67.8 9859 0.124 3.5 325 345
5 × 185 37/2.52 1.6 1.6 2.5 3.0 74.3 11805 0.0991 3.5 375 390
5 × 240 48/2.52 1.7 1.6 3.2 3.3 83.0 15706 0.0754 3.5 440 450



Packing & Shipping


We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



5 Core SWA PVC Armoured Electrical Cable 2 Top Armoured Power Cable 90 °C 0
