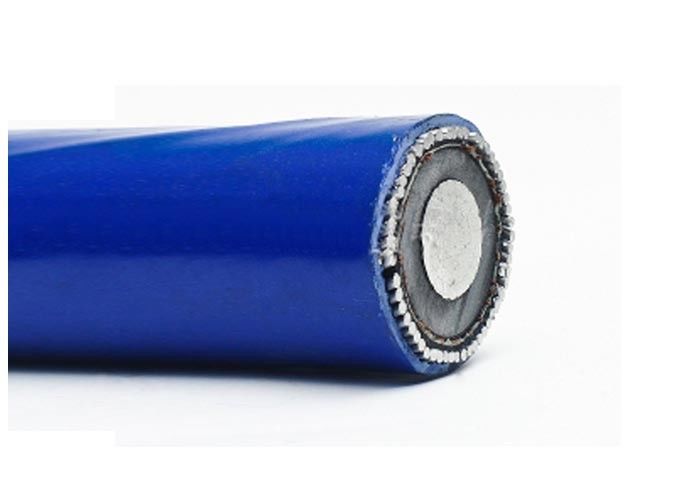

Copper or Aluminum Conductor Steel Wire Armoured Electrical Cable Copper Tape Shield 33kV Cable

Adedi:	500 m
fiyat:	negotiable
Standart ambalaj:	Demir-ahşap davul ambalaj (koruma ile)
Teslim süresi:	Ödemenizi aldıktan sonra 10-15 iş günü
Ödeme yöntemi:	T/t ya da lc
Tedarik Kapasitesi:	Aylık 100km

Ayrıntılar Bilgi

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

CE, RoHS, CCC, KEMA

Ürün adı:

Bakır veya Alüminyum Zırhlı Kablo

İletken Nominal Alanı:

1,5 mm2 - 1000 mm2

Gerilim:

Yüksek

Standart:

IEC 60502-2 IEC 60228

Uygulama:

güç dağıtım hatları, şaftta döşeme, yeraltı suyu

Vurgulamak:

armored electrical wire

armored cable wiring

Ürün Açıklaması

Copper or Aluminum Conductor Steel Wire Armoured Electrical Cable Copper Tape Shield 33kV Cable

Conductor : Compact stranded copper or aluminum conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black

CODE Designation:

YJ: XLPE insulation
V: PVC sheath
32: Steel wire armoring—3 cores
22: Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

MV(6 to 35kv) Power Cable Details

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

Applications:

Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and

moderate pulling force.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates:

CE, RoHS, CCC, KEMA and more others at request

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

Copper or Aluminum Conductor Steel Wire Armoured Electrical Cable Copper Tape Shield 33kV Cable 0
