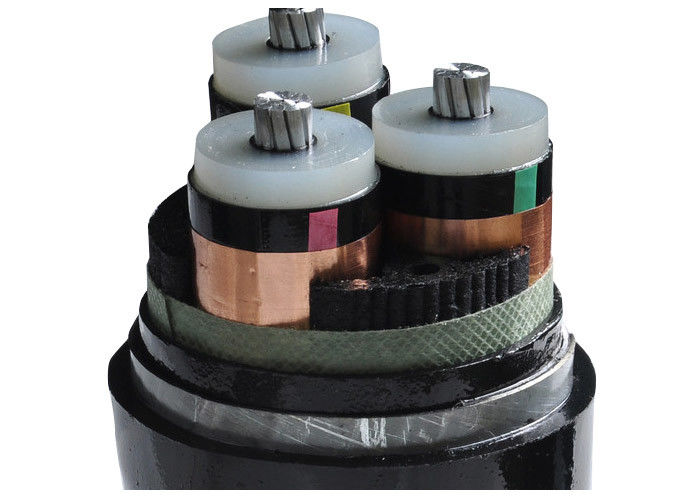

Medium Voltage Steel Armoured Electrical Cable With 3 Cores PVC Sheath

Adedi: 500 Metre
fiyat: US$ 0.35-120 / Meter
Standart ambalaj: Ahşap Davul veya Çelik
Teslim süresi: hafta
Ödeme yöntemi: T / T, L / C
Tedarik Kapasitesi:
Ayrıntılar Bilgi
Ürün Açıklaması
Ayrıntılı Bilgiler
Menşe yeri
Çin
Marka adı
QINGDAO YICABLE CABLE
Sertifika
ISO,CE,IEC,TUV,KEMA
Ürün modeli:
AL / XLPE / STA Kablosu
Orkestra şefi:
Alüminyum
İzolasyon:
XLPE
Zırh malzemesi:
Çelik bant
Çekirdek:
3 Çekirdek
Kılıf malzemesi:
PVC, PE, LSOH
Sertifika:
KEMA, Tip testi
Standart:
IEC, BS, IS, VDE
Vurgulamak:

armored electrical wire

,

armored cable wiring

Ürün Açıklaması

Medium Voltage Steel Armoured Electrical Cable With 3 Cores PVC Sheath



Construction







CU (AL)/XLPE Insulated Electric Cable
Copper (Aluminum)/XLPE insulation/Steel wire armored /PVC Sheath cables





The flame-retardant cable covers all kinds of low-smoke,low-halogen, low-smoke halogen free,and non-smoke nonhalogenated and three classes ofA, B, C.



The cable is used in electric transmission and distribution system operating at rate voltage of 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 18/30, 26/35KV.





XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable.





XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting antithetical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.





Application


Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.




MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable







Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request


Technical data:

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core


Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2



Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request


This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.




Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



FAQ



1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.



Medium Voltage Steel Armoured Electrical Cable With 3 Cores PVC Sheath 0
