4 Core 185 Sqmm with Earth 95 mm2 1kV Armoured Electrical Cable Steel Tape Armord XLPE Copper Cable

Adedi:	500 Metre
fiyat:	US$0.3~119/Meter
Standart ambalaj:	Ahşap veya Çelik Variller
Teslim süresi:	Miktar başına bir veya iki hafta
Ödeme yöntemi:	T / T, L / C
Tedarik Kapasitesi:	Ayda 10.000 Kilometre

Ayrıntılar Bilgi

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri

Çin

Marka adı

QINGDAO YICABLE CABLE

Sertifika

ISO,CE,IEC,TUV,KEMA

Ürün adı:

XLPE Bakır Kablo

Gerilim:

1kV

Orkestra şefi:

Bakır

İzolasyon:

XLPE

zırh:

Çelik bant

boyutları:

1.0 - 630 M²

Çekirdek:

4 Çekirdek ve bir toprak

Ceket:

PVC, PE veya LSZH

Garanti:

2 Yıl

standartları:

IEC / BS / IS / VDE

Vurgulamak:

armored cable wiring

armoured power cable

Ürün Açıklaması

4 Core 185 Sqmm with Earth 95 mm2 1kV Armoured Electrical Cable Steel Tape Armord XLPE Copper Cable

Details

Code	:	YJV22, ZR-YJV22, YJY23, ZR-YJY23
Standarts	:	TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction	:	1- Solid, Stranded or Flexible Copper Conductor
		2- XLPE insulation (cross-linked PE)
		3- Galvanized Steel Tape Armour
		4- PVC outer sheath, or PE, LSOH
Application	:	Preferably for installation indoors, in cable ducts and in industrial plants or
		switching stations, underground installation with additional protection where
		mechanical damage is unexpected.
Technical Data	:	Max. operating temperature 90 ºC
		Short circuit temperature 250 ºC

YJ: XLPE insulation

V: PVC sheath

22: Galvanized steel tape armoring

ZR: Flame retardant

Technique property

1,The long time working temperature is at 90℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 250℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

Type Description & Application Occasion

YJV22	XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable	Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
YJLV22	Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable
YJV32	Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable	Apply to shafts,water and soil,able to bear the larger positive pressure.
YJLV32	Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable
YJV42	Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable	For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.
YJLV42	Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable

Standards

International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST₂ to IEC 60502, black

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Technical Parameters

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Steel Tape Thickness	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)	Current Rating
mm²	pc/mm	mm	mm	mm	mm	(mm)	kg/km	Ω /km	In air (A)	In soil(A)
4 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	2 × 0.2	1.5	18.4	565	4.61	34	45
4 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	2 × 0.2	1.5	19.8	692	3.08	43	57
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	2 × 0.2	2.0	22.8	953	1.83	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	2 × 0.2	2.0	25.8	1318	1.15	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	2 × 0.2	2.0	30.4	1877	0.727	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	2 × 0.2	2.0	34.1	2324	0.524	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	2 × 0.2	2.0	38.7	3415	0.387	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2 × 0.2	2.5	44.2	4432	0.268	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2 × 0.5	2.5	49.8	5747	0.193	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2 × 0.5	2.5	55.4	7112	0.153	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2 × 0.5	3.0	60.1	8556	0.124	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2 × 0.5	3.0	66.9	10510	0.0991	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2 × 0.5	3.5	74.8	13232	0.0754	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.7	2 × 0.5	3.5	78.4	16452	0.0601	505	515

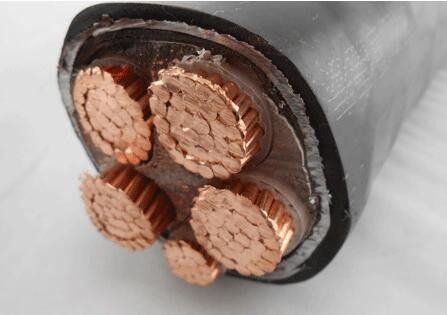

4 Core 185 Sqmm with Earth 95 mm2 1kV Armoured Electrical Cable Steel Tape Armord XLPE Copper Cable 0

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
